Install Raspbian for Robots on an SD Card for the Raspberry Pi

Install Raspbian for Robots on an SD Card for the Raspberry Pi

Install Raspberry Pi Image on SD Card

Make your own Raspberry Pi SD Card or update your old SD Card.

This tutorial will show you how to download and install the Dexter Industries software, Raspbian for Robots or CINCH on an SD Card.  We show you how to install the image on the Raspberry Pi using a Mac and a PC.

Before beginning, make sure you are using a 8GB microSD Card or larger (we recommend a 8 GB card).  You will need:

  • A minimum 8GB card to install this image.
  • If you’re using a microSD Card, you may need a microSD card adapter (shown to the right) to fit the card into your computer.

Using a PC

First, download a copy of the image from Sourceforge here or Google Drive from Google here.

Click “Files” and you should see a screen like below.

Sourceforge download Raspberry Pi Image

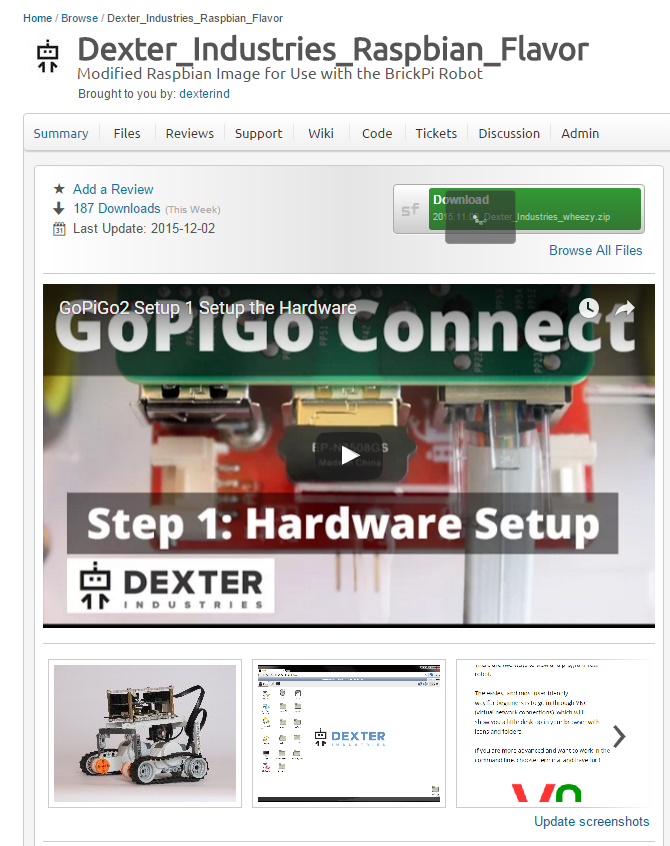

Files for download on Sourceforge.

PC users should download the latest zip compressed file.  Files in this directory are arranged and named by date.  Select the latest file, and hover your mouse over the file name.  Choose the latest file that ends in “.zip”, click on it, and download the file.

After the file is downloaded, we can uncompress it.

Next, un-compress the File.  In windows, we use a free program called WinRAR, freeware you can download here.  Un-compress the downloaded .zip or .rar file.

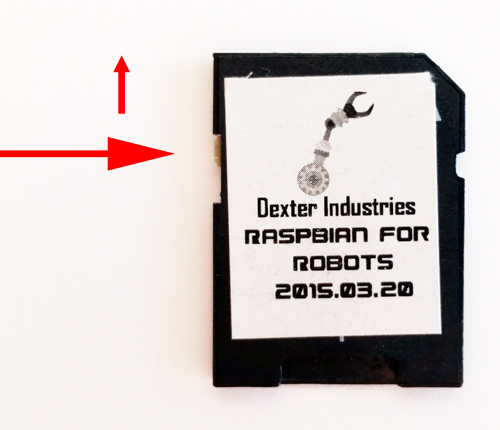

Next, make sure your SD Card adapter is unlocked.

Unlock_SD_Card-small

Next, put the micro SD card into your micro SD card adapter.  Put the SD card into your SD card reader.  Insert the SD Card into your PC SD Card reader.

Insert the SD Card into your PC SD Card reader to install the image on the raspberry pi.

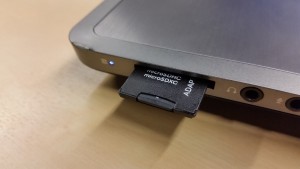

Insert the SD Card into your PC SD Card reader.

Next, we will install Etcher.  Go to etcher.io  in your web browser.

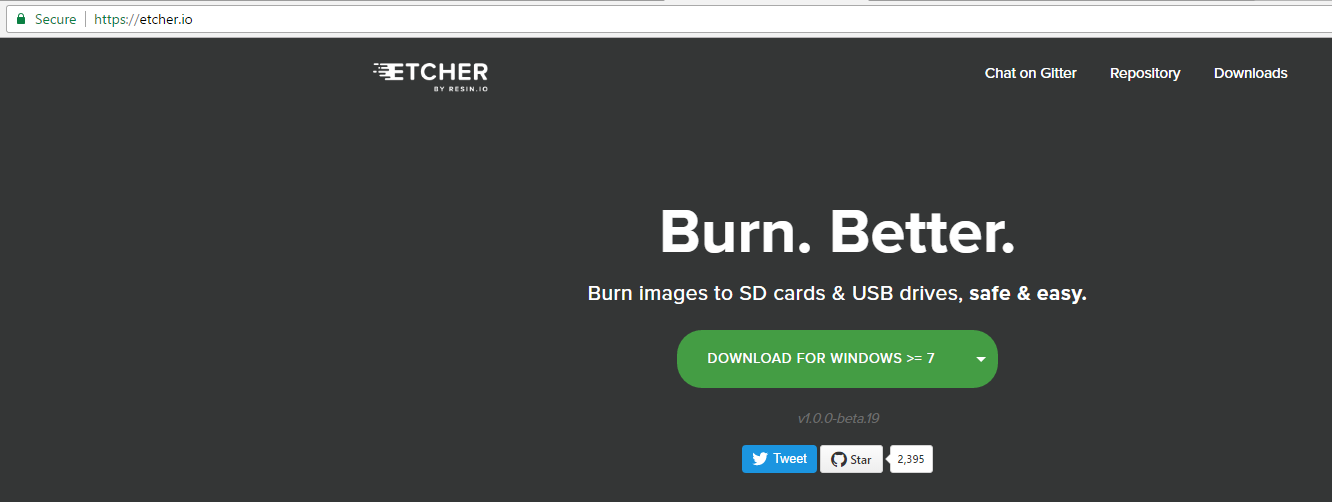

Select “Etcher for PC” or “Download for Windows >= xx”, on the big green button in the middle of the page.  This should begin your download.  The total size of the download is about 80 MB. This should download a file named something like `Etcher-1.0.0-beta.19-win32-x64.exe` Once the download is complete, double click on the “.exe” file and follow the directions to install Etcher on your PC.

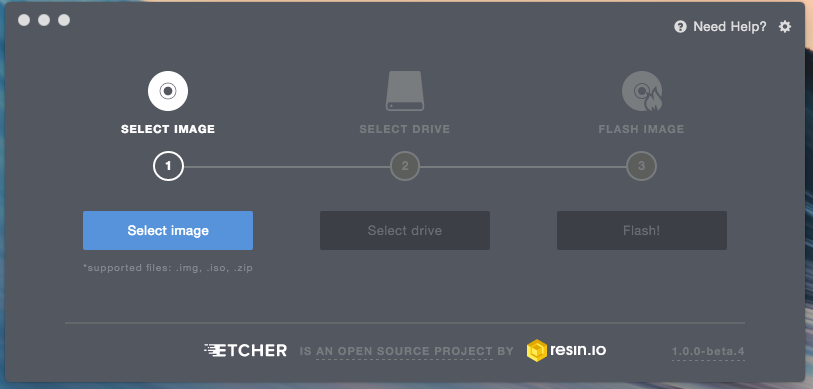

Start etcher.  The main Etcher program should appear.

Now, find the unzipped “.img” file we uncompressed earlier.  Drag this file over to the blue “Select Image” button on the Etcher program.  You can also click the blue “Select Image” button and find the “.img” file on your file directory.

Start_etcher

If you haven’t inserted your SD card at this point, please do.  You should see it automatically pop up, and the red “Connect a Drive” button will disappear, replaced with information about your SD Card location.

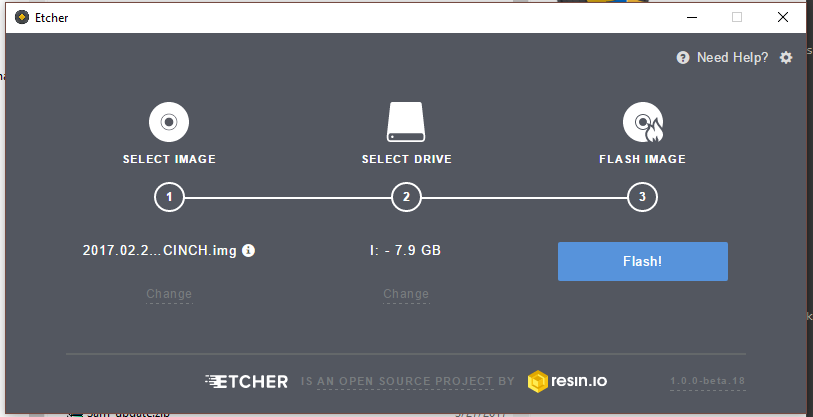

Note a few things on Step 2 at this point.  First, the disk location is showing.  In our case it is `I: – 7.9 GB`.  Your drive might be different, depending on your computer.  Also, our SD Card is 8.0 GB, yours may be a different size.  If you see a number that is much larger than your SD Card, stop and seek help.

At this point, we’re ready to flash the image onto the SD card.  Press the blue “Flash!” button.

Etcher-Starting

After a few seconds, you should see progress. Note in the picture below the image has 9% written, and the speed is shown below the blue button.   Depending on the SD card you are using and your PC, the time to flash the image may take some time.

Etcher-Progress_writing_the_image

Finally, after the image is flashed, the Etcher software will check to make sure it is properly written to the SD card (this is called Validating).

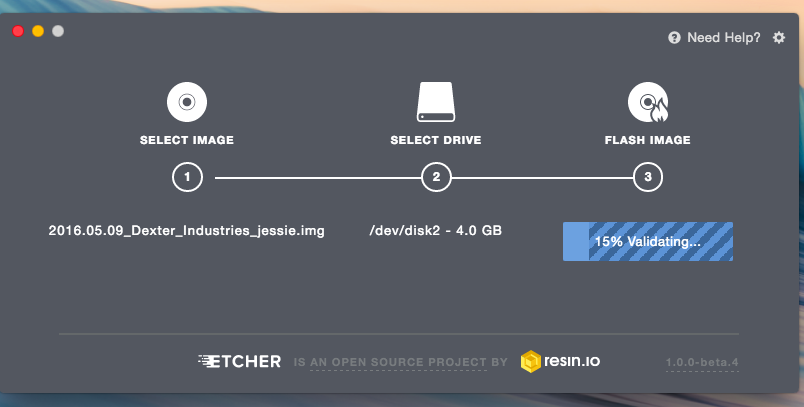

Etcher validating image install the image on the raspberry pi

The validation process should be much quicker than writing to the SD Card.  You will see progress in the Validating progress bar.

Finally the entire process should be complete.  You will see a screen that looks like the following with “Flash Complete!” at the top.

Etcher-finished installing the image on the raspberry pi sd card

Remove the SD Card from your PC, place it into your Raspberry Pi, and turn on your Raspberry Pi.



Using a Mac



First, download a copy of the image from Sourceforge here or Google Drive from Google here.

Click “Files” and you should see a screen like below.

Sourceforge download Raspberry Pi Image

Files for download on Sourceforge.



Mac users should download the latest RAR compressed file.  Files in this directory are arranged and named by date.  Select the latest file, and hover your mouse over the file name.  Choose the latest file that ends in “.rar”, click on it, and download the file.

After the file is downloaded, we can uncompress it.  “Rar” files are compressed files, just like a zip file.  Before beginning we need to uncompress the downloaded file.

Screen shot of unarchiver.We have used the App called “The Unarchiver“.  This app can be downloaded and installed in the App Store.  If you have a decompression program on your Mac already, skip this step.

Control-Click on the rar file and select “Open With –> The Unarchiver”.

Unarchiver in action.

After unarchiving the file, you should see an image file, that ends with “.img”.

Uncompressed image file.

Next, make sure your SD Card adapter is unlocked.

Unlock_SD_Card-small

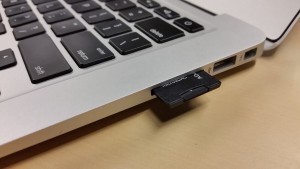

The SD Card inserted into the Mac SD Card reader port.

The SD Card inserted into the Mac SD Card reader port.

Next, put the micro SD card into your micro SD card adapter.  Put the SD card into your Mac SD card reader.  If your Mac does not have an SD Card Reader, you may need to use a USB SD Card reader.





Next, we will install Etcher.  Go to etcher.io  in your web browser.

download_etcher-io install the image on the raspberry pi

Select “Etcher for Mac” or “Download for OSX >= xx”, on the big green button in the middle of the page.  This should begin your download.  The total size of the download is about 80 MB.  Once the download is complete, double click on the “.dmg” file and install Etcher on your Mac.

Start etcher.  You may be prompted for your computer login information.  Enter it.

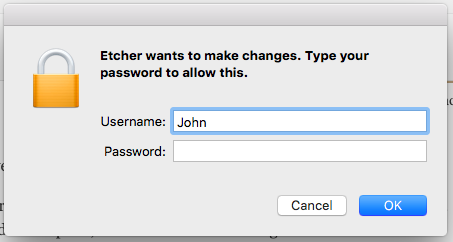

Etcher_wants_to_make_changes

The main Etcher program should appear.



Now, find the unzipped “.img” file we uncompressed earlier.  Drag this file over to the blue “Select Image” button on the Etcher program.  You can also click the blue “Select Image” button and find the “.img” file on your file directory.

Start_etcher

If you haven’t inserted your SD card at this point, please do.  You should see it automatically pop up, and the red “Connect a Drive” button will disappear, replaced with information about your SD Card location.

Etcher_select_drive

Note a few things on Step 2 at this point.  First, the disk location is showing.  In our case it is “/dev/disk2”.  Your disk# might be different, depending on your computer.  Also, our SD Card is 8.0 GB, yours may be a different size.  If you see a number that is much larger than your SD Card, stop and seek help.

At this point, we’re ready to flash the image onto the SD card.  Press the blue “Flash!” button.

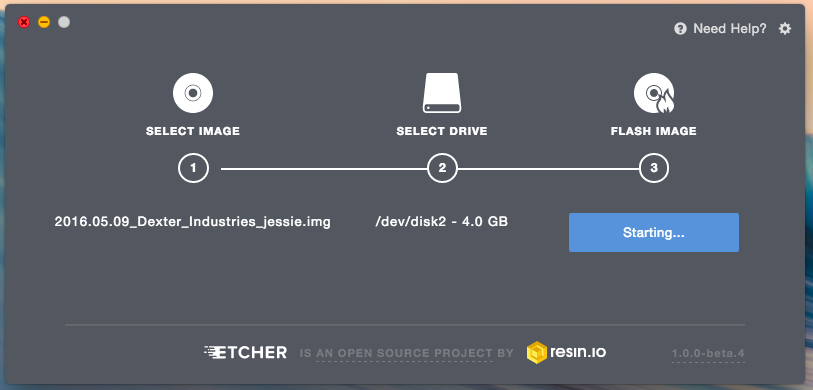

Etcher-Starting

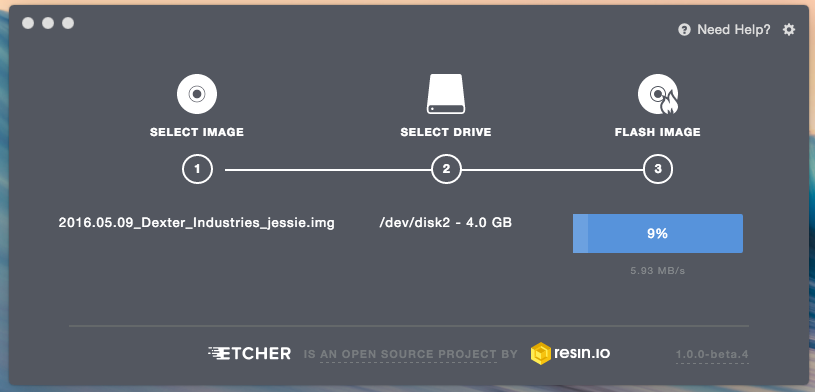

After a few seconds, you should see progress. Note in the picture below the image has 9% written, and the speed is shown below the blue button.   Depending on the SD card you are using and your Mac, the time to flash the image may take some time.

Etcher-Progress_writing_the_image

Finally, after the image is flashed, the Etcher software will check to make sure it is properly written to the SD card (this is called Validating).

Etcher validating image install the image on the raspberry pi

The validation process should be much quicker than writing to the SD Card.  You will see progress in the Validating progress bar.

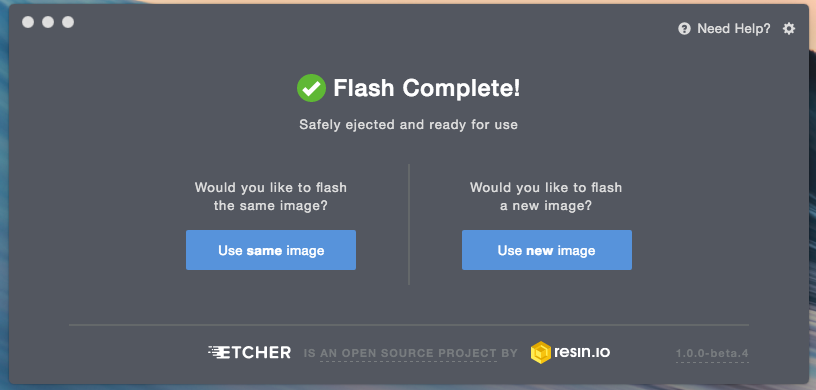

Finally the entire process should be complete.  You will see a screen that looks like the following with “Flash Complete!” at the top.

Etcher-finished installing the image on the raspberry pi sd card

Remove the SD Card from your Mac, place it into your Raspberry Pi, and you can begin using the new SD Card.



Advanced: Using a PC and Win32 Disk Imager

You can watch the video, or follow the written instructions below.



First, Download the image.  We keep the latest compressed file on Sourceforge and Google Drive.  You can download the file from one of the below links:

sourceforge_page_for_raspbian_for_robots

Next, un-compress the File.  In windows, we use a free program called WinRAR, freeware you can download here.

Un-compress the downloaded .zip or .rar file.

We will also need a program to install the image on the SD Card.  Download and install Win32DiskImager.  Download Win32DiskImager to your PC.  You may need to run this program “As Administrator” by right clicking on the file, and selecting “Run as Administrator.”

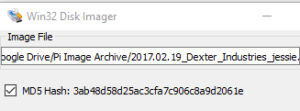

Large files can often be corrupted during download. You can check that your file was not corrupted by calculating the MD5 sum (a helpful explanation of what’s going on is here).   Open Win32DiskImager and check the MD5 sum of the file.  Check the MD5 sum by clicking “MD5 Hash”

The hash of a complete, undamaged, and unzipped image is included with the zip download of the latest version of Raspbian for Robots.

Next, we figure out the drive letter our SD card is registered as.

Make sure the lock is off on your SD Card Adapter.

Unlock_SD_Card-small

Insert the SD Card into your PC SD Card reader.

Insert the SD Card into your PC SD Card reader to install the image on the raspberry pi.

Insert the SD Card into your PC SD Card reader.

Find the drive letter for your SD Card.

Find the SD Card letter to install the raspbian image file.

In this case, our SD Card is drive letter “D”.

Install the image on your SD card. Be careful!!  If you select the wrong drive you can destroy your computer’s hard disk or other information!

Select the drive where your SD Card is located.  In this case, we’re selecting drive “D”.

Selecting the D Drive

Selecting the D Drive

Finally, press “Write”.  You’ll be prompted to double check your drive selection.  If everything is correct and you’re sure you’ve selected the SD Card, press “Yes”.

install raspberry pi image on sd card

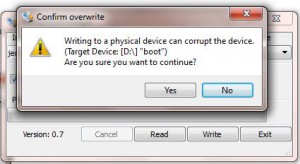

Double check your drive selection and then press “Yes”.

Installation time will depend on the speed of your SD Card writer.  You will see a progress bar move across the screen though.

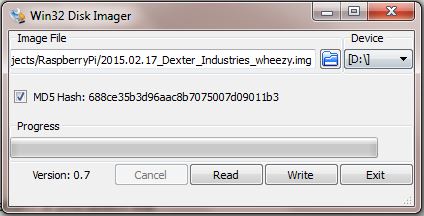

win32 disk imager with d drive selected for installing the raspberry pi image making progress

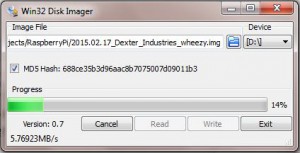

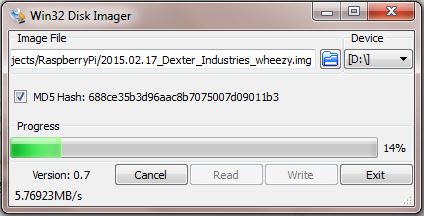

Making progress on installation: the green bar moves across the screen. Note the MD5 Hash is for an earlier version of the image! If you downloaded the latest, you will not have a different Hash!

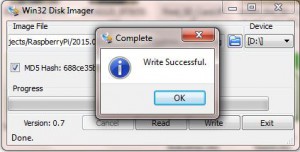

At the end of the SD Card burn, an alert pops up to let you know that installation is complete!  Don’t remove the SD Card or stop the burn process until you see this dialog!

SD Card image write successful to the Raspberry Pi SD Card install the image on the raspberry pi

Your First Time Running the New SD Card

The first time you run the new SD Card in your Raspberry Pi, you should make a few adjustments.

First login to your Raspberry Pi and pull up the command line.   The image only took up about 3.5 GB of your SD Card, but you can expand the file system to use the entire SD Card.  You will not be able to use the full 8 GB (or bigger if you have your own card) of the card unless you expand the image.

You can do this by expanding the image to the full size of your SD Card.   First type the following to log in to your Raspberry Pi:

ssh pi@dex.local

Enter the password: robots1234

Then type:

sudo raspi-config



sudo-raspi-config install the image on the raspberry pi

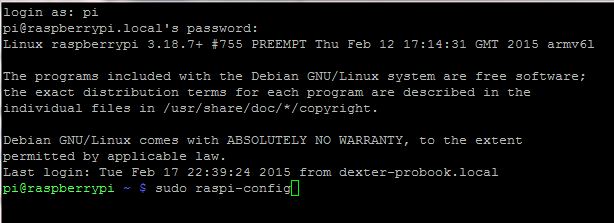

On the command line type “sudo raspi-config”

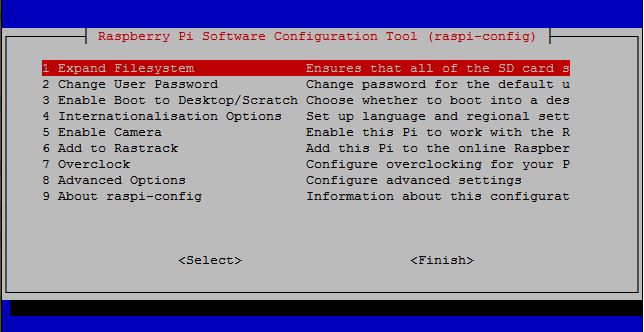

The Raspberry Pi Configuration console will appear.

Select the first option and press return.

Select the first option and press return.

Next, select “Expand Filesystem” by pressing enter to use all available space on the SD Card.

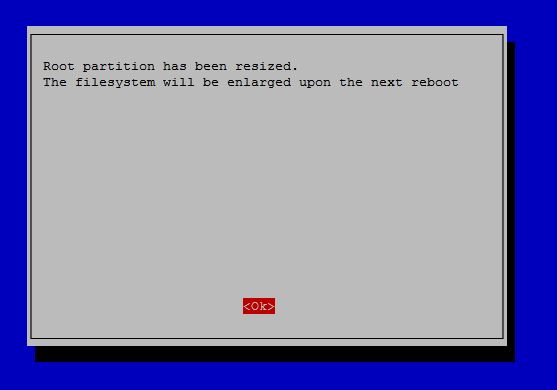

Success! You'll see a little motion on your screen. install the image on the raspberry pi

Success! You’ll see a little motion on your screen.

Finally, after success, you select “Ok” by hitting the enter key.  This will take you back to the main Raspberry Pi Configuration Menu.

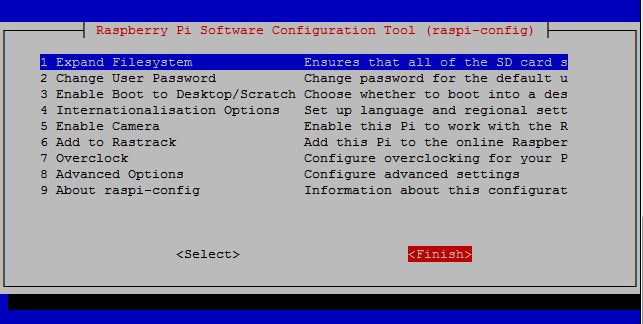

Press the Right Arrow to select "Finish". install the image on the raspberry pi



Update your Raspberry Pi

Finally, make sure you get the latest version of the operating system.  You can update your operating system and hardware profiles by connecting to the internet and typing in the following commands:

sudo apt-get update
sudo apt-get upgrade

More Reading

We highly recommend you visit the elinux.org website and read through their RPi Easy SD Card Setup before installing an image.

The Raspberry Pi Foundation has a great tutorial on installing an image using a Mac OS here.

The Raspberry Pi Foundation has a great explanation of how to install an image using Windows here.

Questions?

We’re here to help!  Ask on our forums!

Learn More!

If you liked this tutorial, consider getting the SD Card with Raspbian for Robots here.

EDUCATORS

Check out our DexterEd page to learn about our Classroom Kits, Curriculum and Teacher Trial program.
