The Arduberry is compatible with the Raspberry Pi Model B+.

To use the Arduberry with the Raspberry Pi Model B+, just mount the Arduberry on the 40 pin header on the Raspberry Pi Model B+. Be careful when mounting the Arduberry since it comes with a 26 pin header and if you mount it incorrectly, it can cause some serious damage to both the Arduberry and the Raspberry Pi.

The pin on the GPIO header on the Arduberry marked as “1”  should go into the Raspberry Pi Model B+ header pins on the top left corner, far from the USB ports and the micro USB power connector.

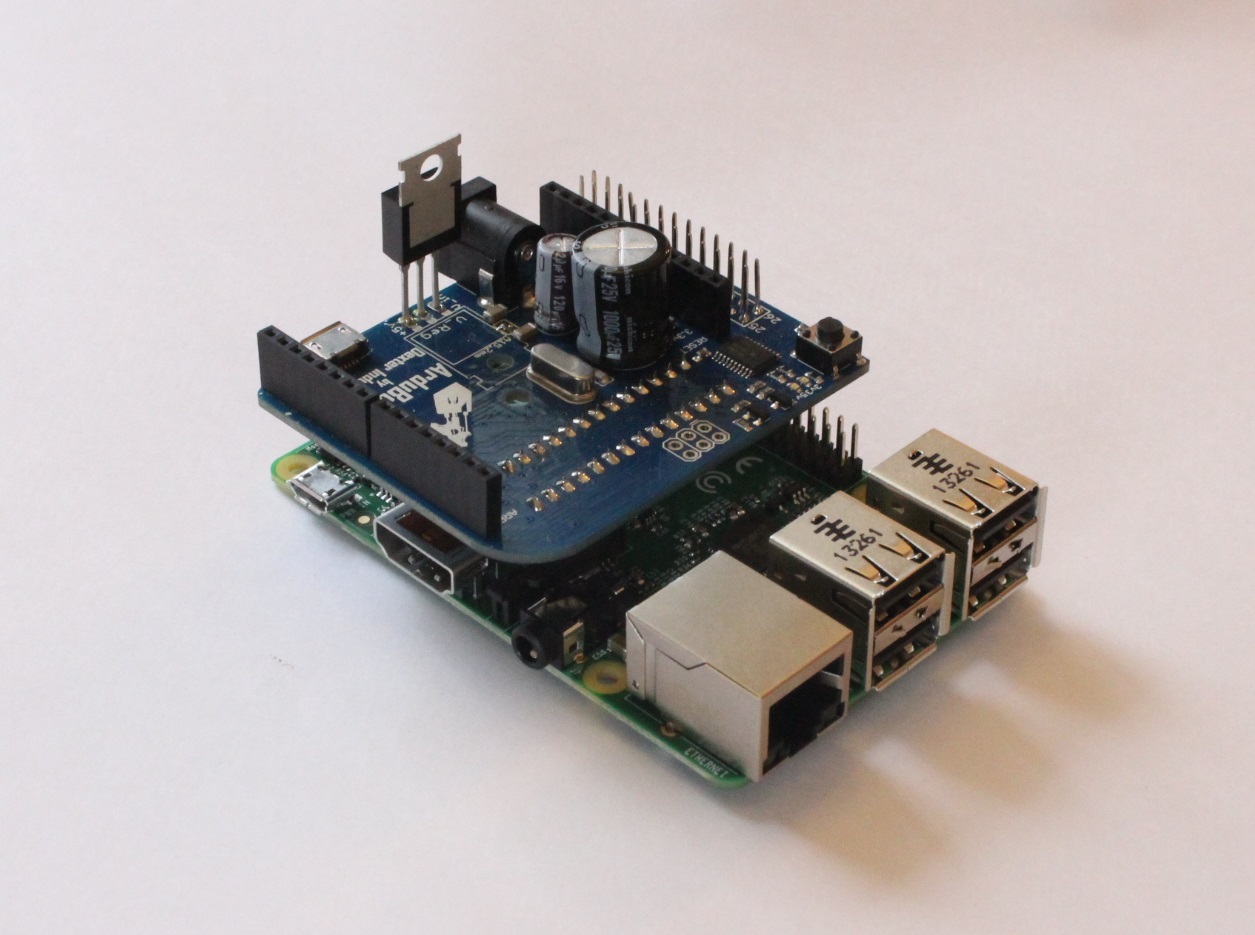

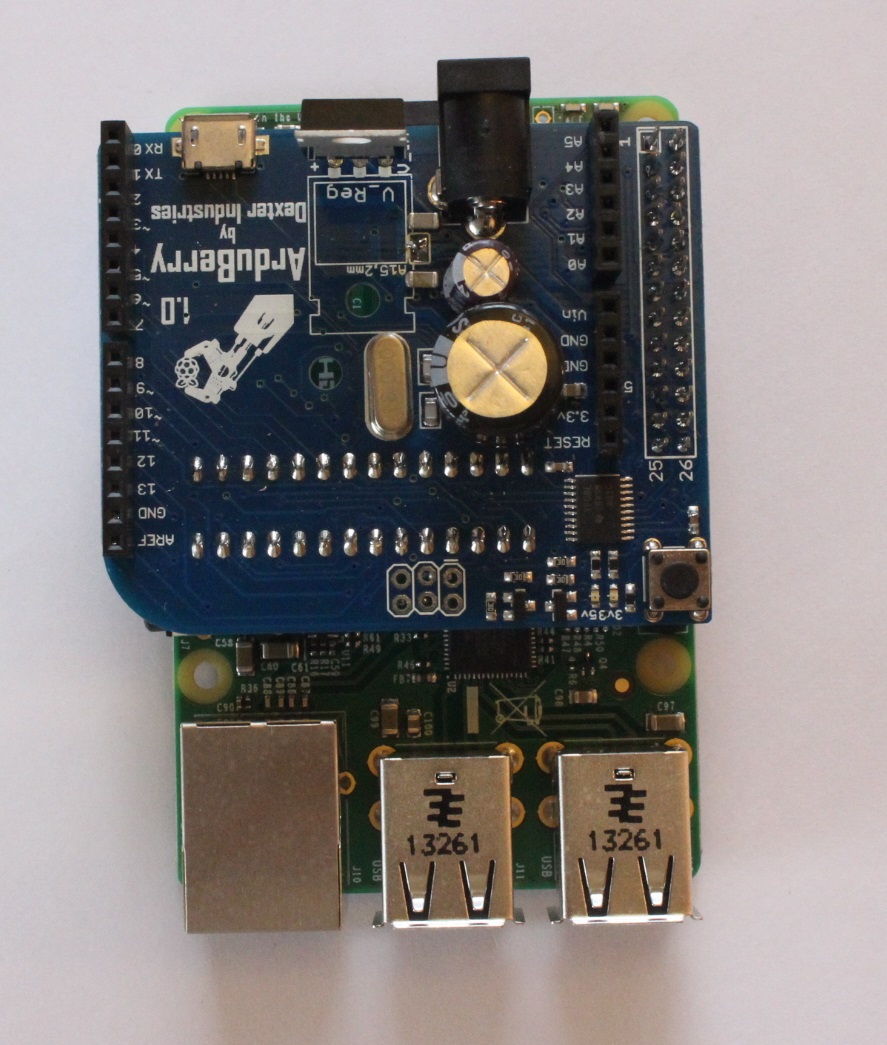

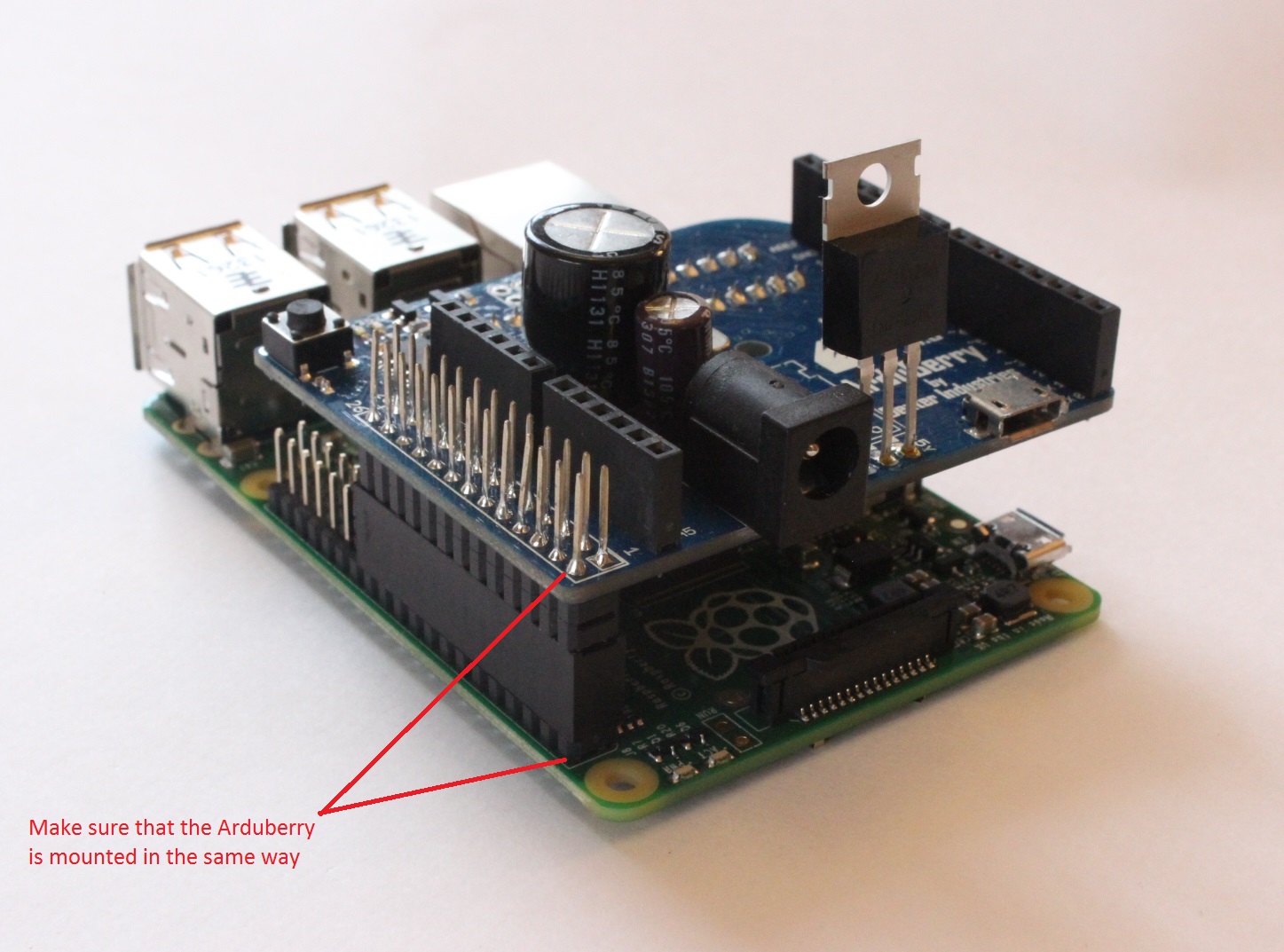

Please look at the pictures below and make sure that you have connected the Arduberry properly before powering it on.
