Powering the Arduberry from a DC Power Jack

Powering the Arduberry from a DC Power Jack

The Arduberry can be used as a standalone device and can be powered externally.

To power the Arduberry Externally, you will need a few more components. Here is the list of components that you’ll need:

  1. IC1            LM7805                        512-LM7805ACT
  2. F1             Resettable Fuse           504-PTS12066V100
  3. C8,C10     .1uF Capacitor              77-VJ0603Y104KXJCBC
  4. C9            1000uF- Capacitor       140-REA102M1ABK1012P

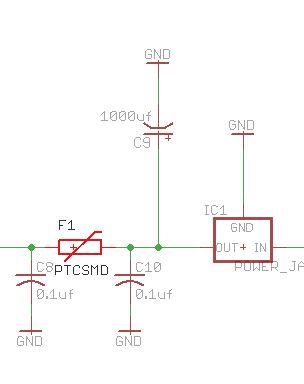

You can find the placement of the parts in the Schematic and the Board diagram here.

power

Here are some pictures of the Arduberry with it’s power circuit in action:

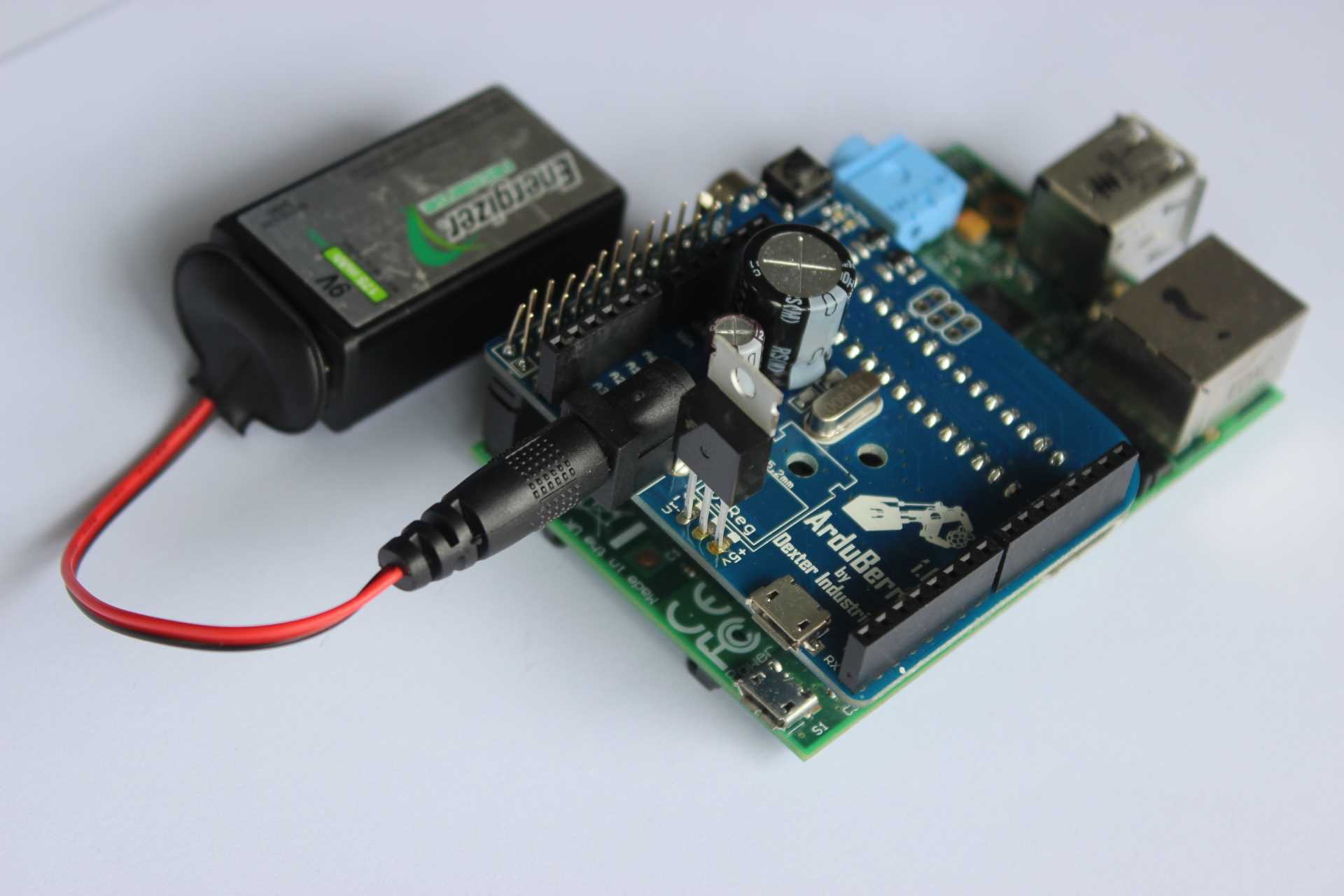

arduberry_power_battery

Arduberry and the Raspberry Pi powered using a 9V battery

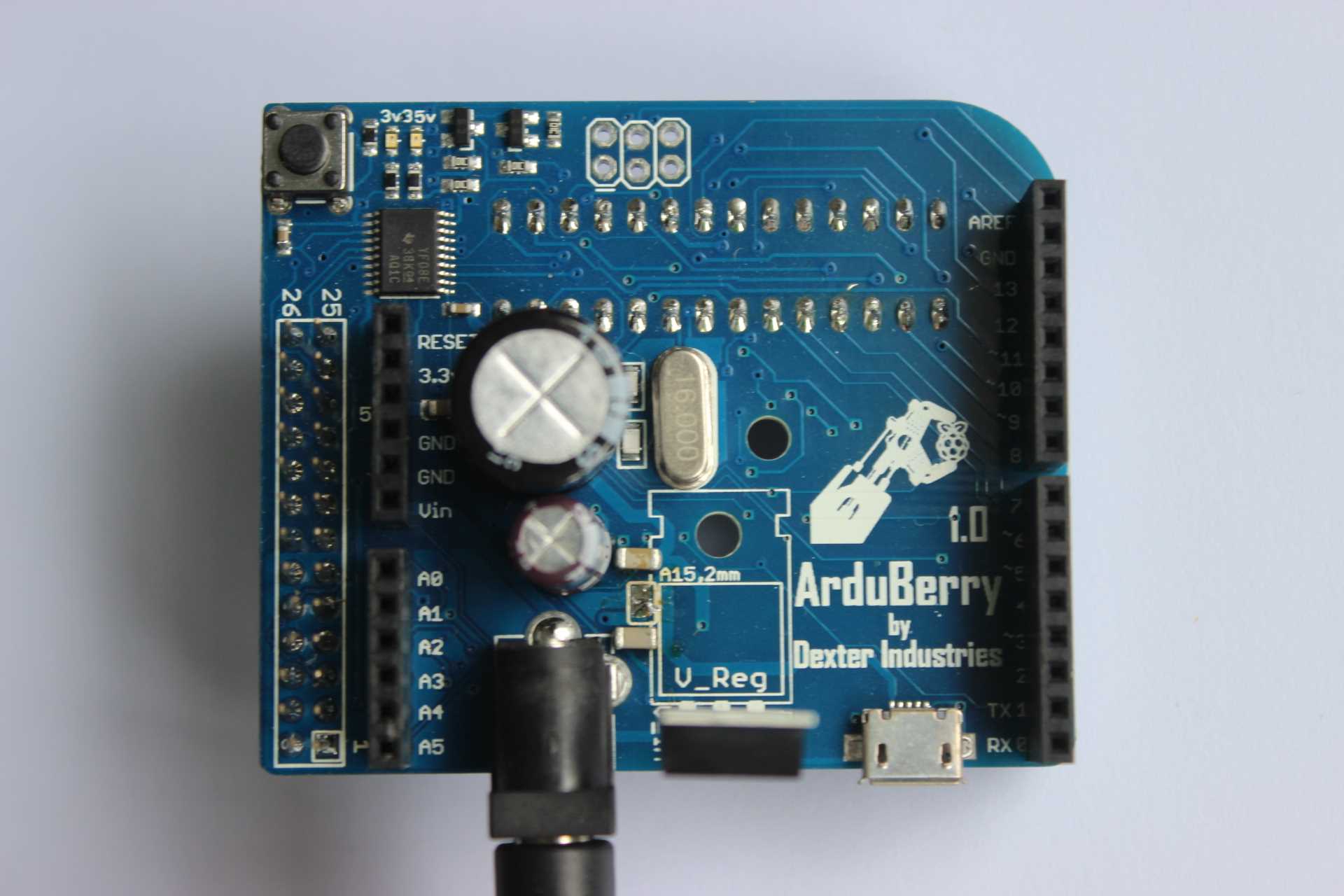

arduberry_power_top

Arduberry with all the components mounted

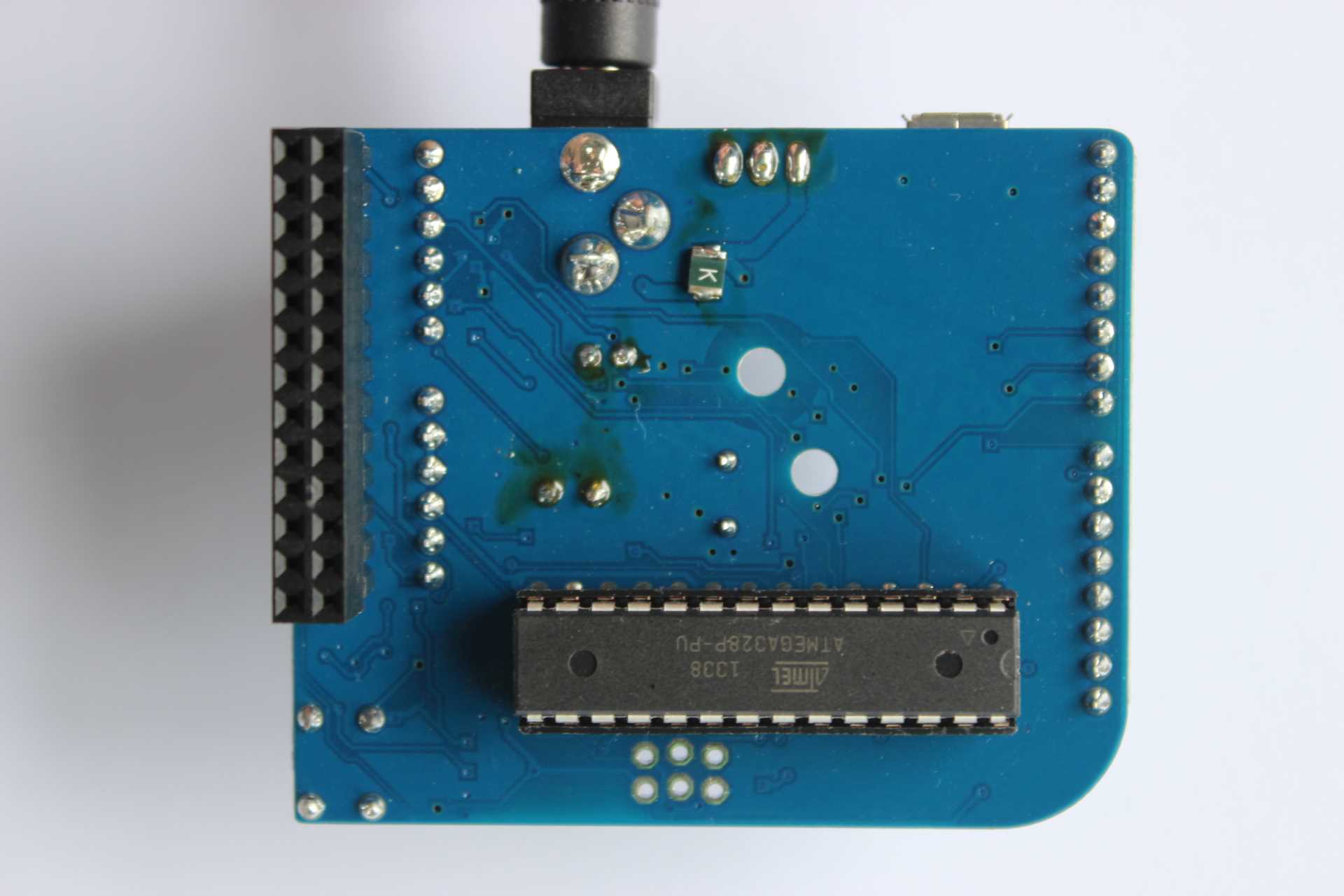

arduberry_power_fuse

The polyfuse goes on the bottom
