This example will show how to use the Dexter Industries GPS shield with the Raspberry Pi using the Arduberry.

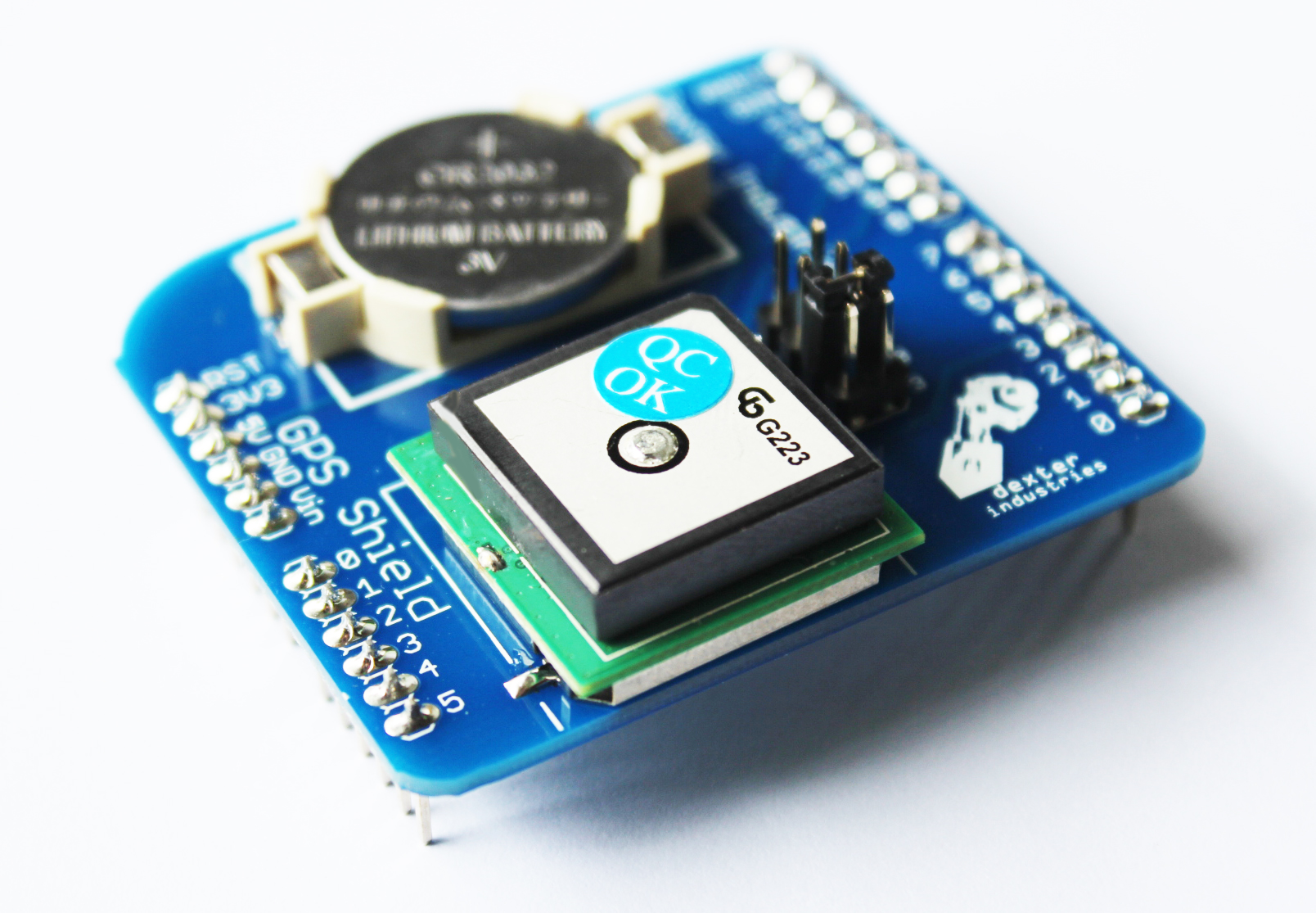

GPS Shield for the Arduino.

GPS Shield for the Arduino.

Hardware Required:

1.Raspberry Pi

2.Arduberry

3.Dexter Industries GPS Shield





Step 1 :

Slide on the Dexter Industries GPS shield on the Arduberry. Slide the Arduberry on the Raspberry Pi and power it on.

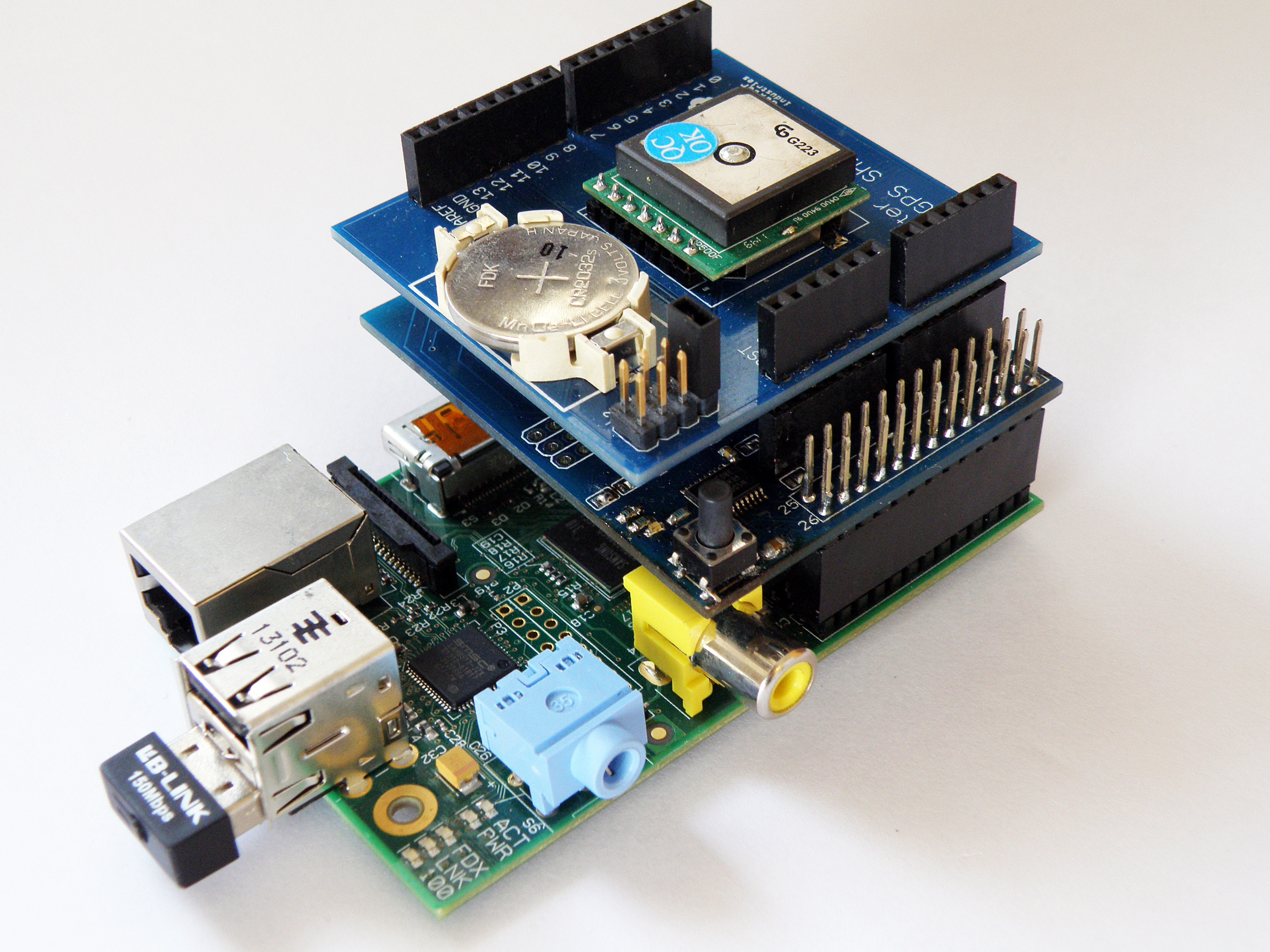

Dexter Industries Arduino and Raspberry Pi GPS Shield

Step 2:

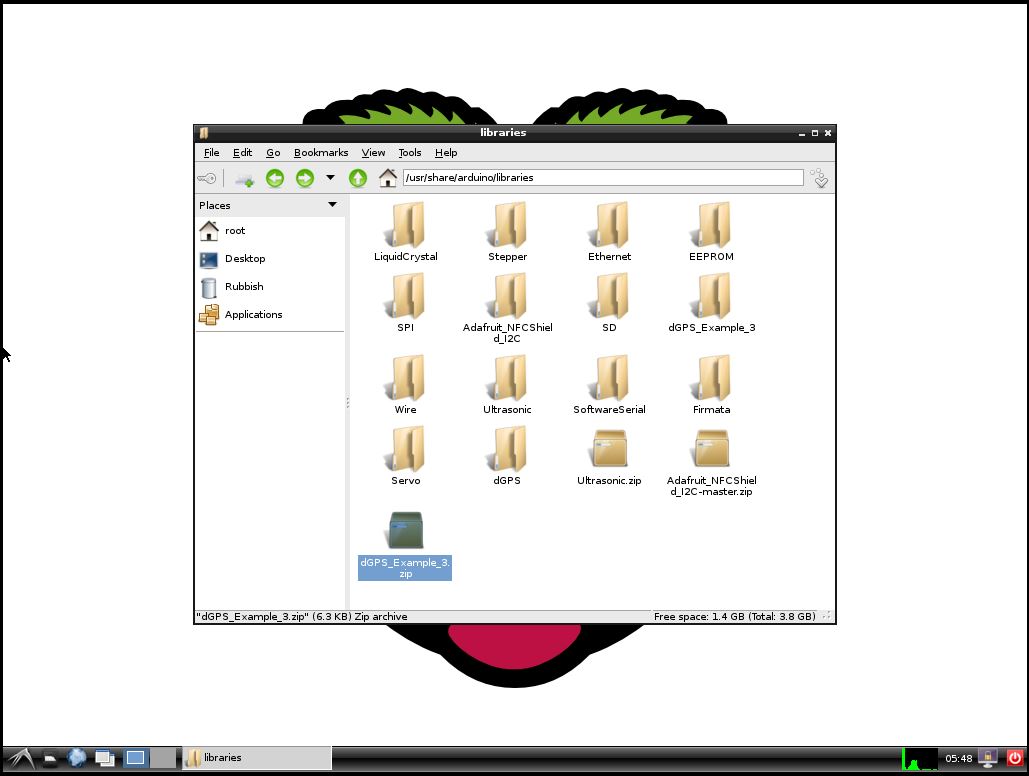

Download the Dexter Industries GPS library on the Raspberry Pi using the Netsurf Browser and save it in /usr/share/Arduino/libraries and extract it there. Follow the Adding a New Library tutorial for step by step instructions for installing a new library .

new_libStep 3:

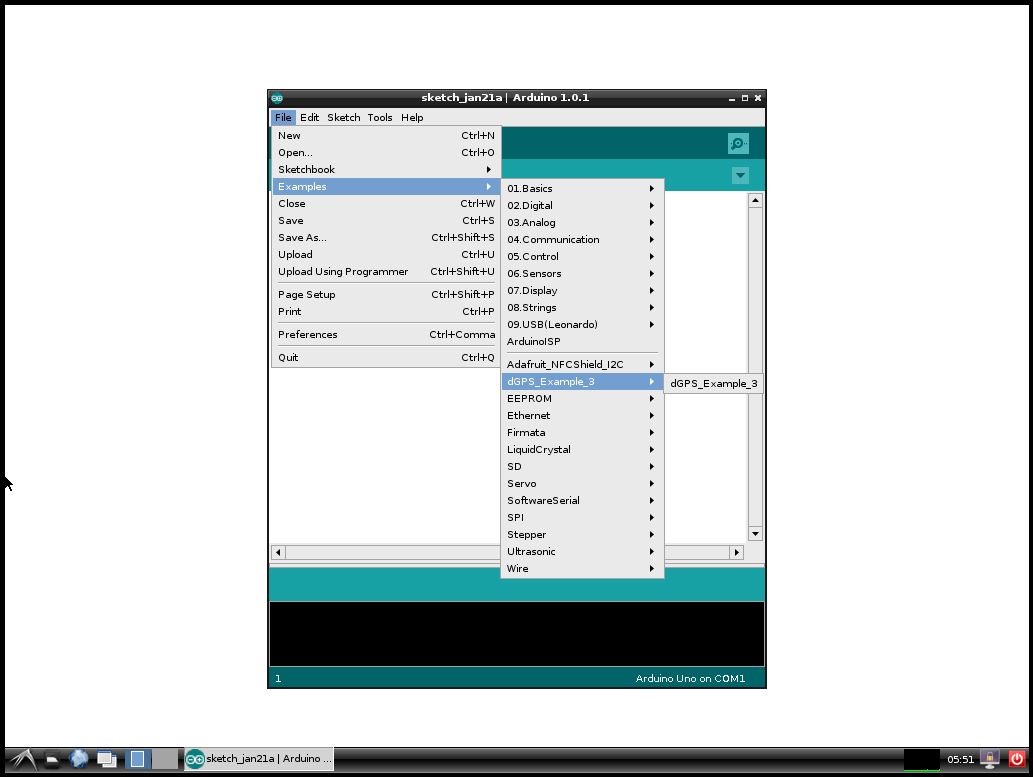

Open Arduino, and open the example dGPS_Example_3 from the dGPS_Example_3 folder. Change the programmer to Raspberry Pi GPIO and upload the sketch to the Arduberry(use Ctrl+Shift+U).

upload4

load exampleStep 4

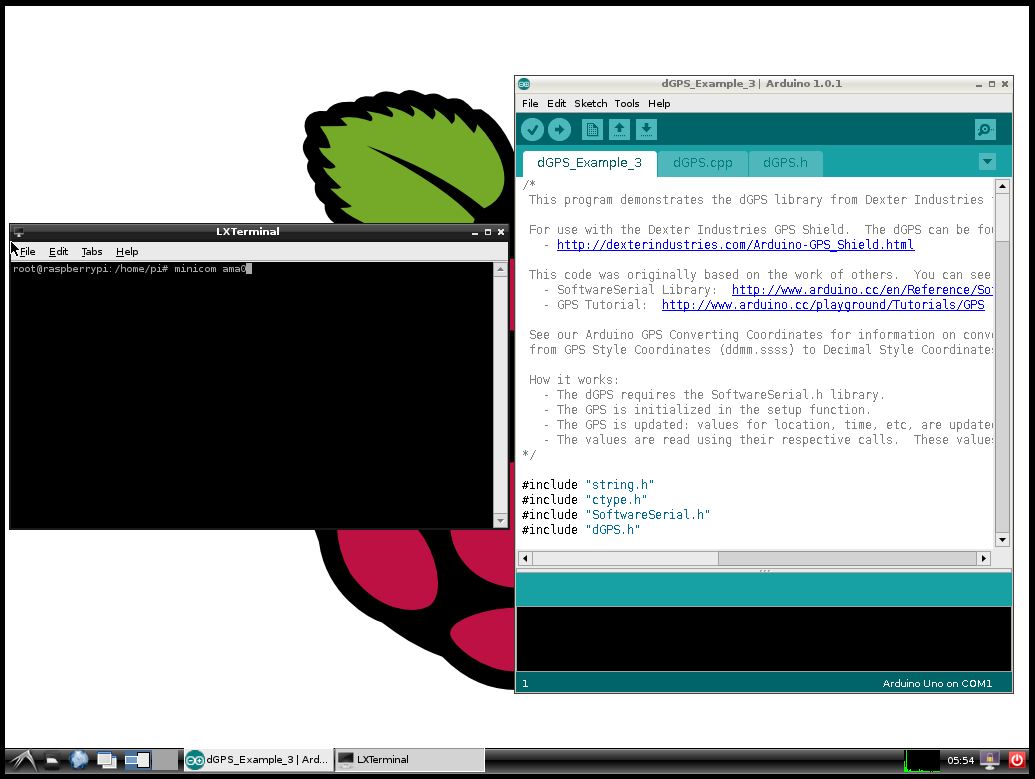

The data that is coming from the Dexter Industries GPS Shield is coming on the Serial Port at 9600 baud. Openminicom Serial monitor in Terminal

minicom ama0

term_openStep 5

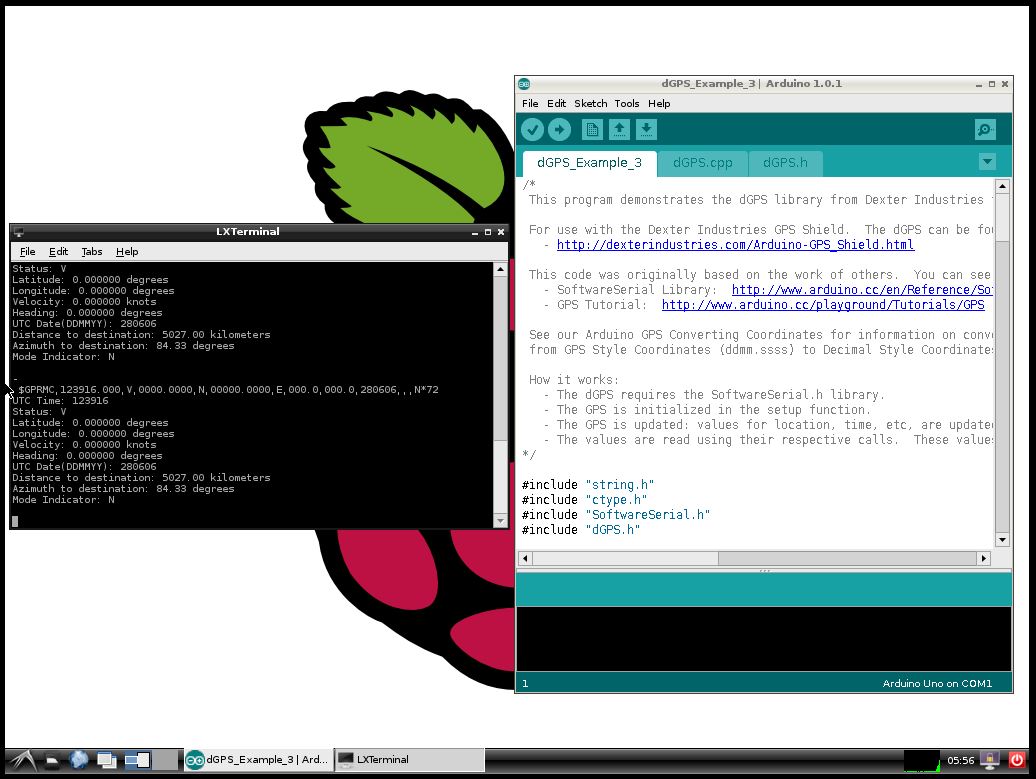

Press reset button on the Arduberry to start receiving the data.

data_gps

Have a question?  Post it on the forums and we’ll help you out.
